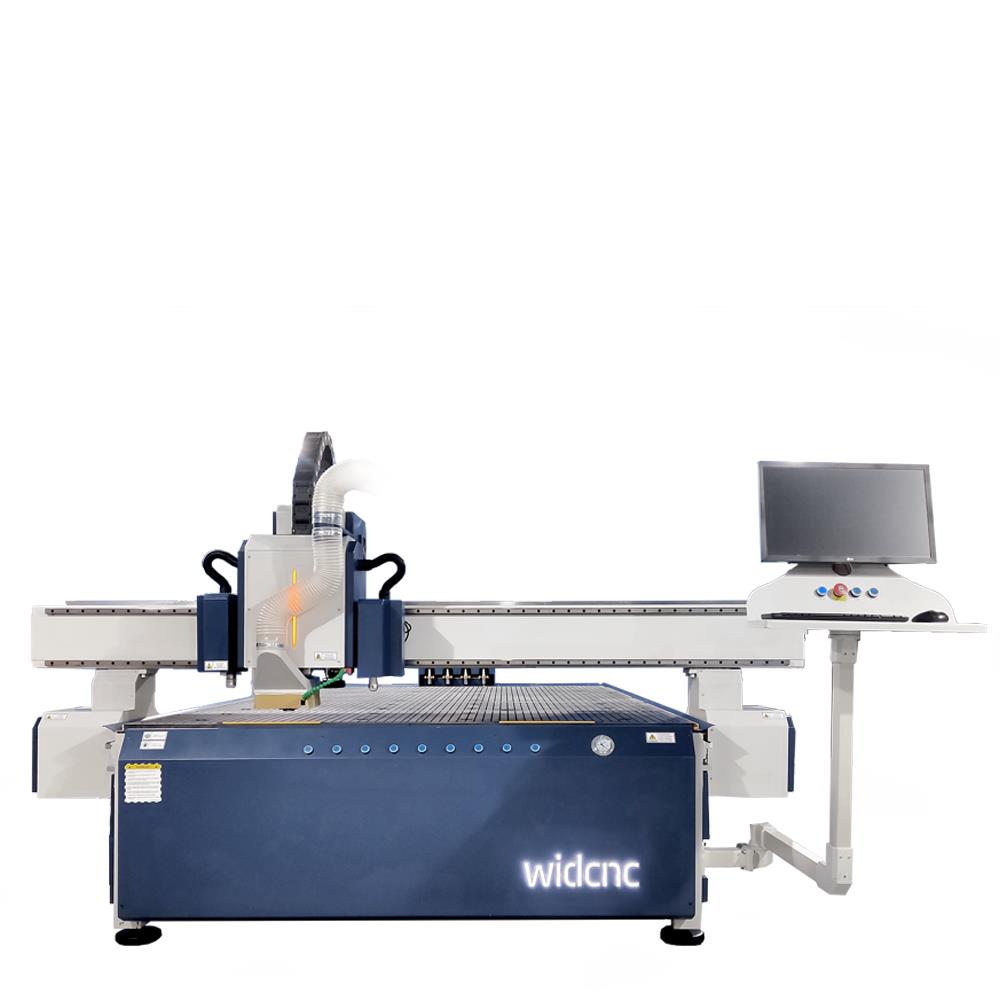

Widcnc 205x305cm - R200k

* Working area: 205x305cm
* Working Height Z axis: up to 20cm
* Travel speed up to 50 m/min
* Industrial tubular chassis, resistant to corrosion and stress
* Z axis, aluminum with anti-corrosion treatment
* X/Y Axis: High precision helical rack and pinion
* Z axis: High precision ball screw
* 25 mm linear guides
* 7 kw air cooled Italian HSD spindle
* Electric oscillating knife with 24000 rpm
* CCD camera for optical reading and positioning
* Servo Motors with planetary gearboxes
* Embedded computer
* Vacuum table with 8 zones, electrically operated
* Two 7.5 kw vacuum pumps, with filter and safety valve
* 2.2kw industrial vacuum cleaner with bag
* Automatic lubrication system for linear guides
* “Mist Cooling” tool lubrication and cooling system
* Automatic tool sensor;Vectric VCarve Pro software
* Network and USB connectivity
* Power: Three phase AC 380v 50/60Hz
* Machine Size & Weight: 305x375x230cm - approx. 1750kg
* 1 year warranty
Code: WR208
Box of:1
